V-4 80-55-06 ASTM A536 SG Ductile Iron Stock

80-55-06 ASTM A536 SG Ductile Iron Features Extra Strength

Choose Versa-Bar 80-55-06 ductile iron for...

  1. Decreased material costs
  2. Improved machinability
  3. Superior performance & durability
FREE QUOTE

80-55-06 ASTM A536 SG Ductile Iron Chemical Composition

Carbon Silicon Manganese Sulfur Phosphorus
3.5-3.9% 2.25-3.0% 0.15-0.35% 0.025% max 0.05% max
Material Properties
Tensile strength 80,000 psi
Yield strength 55,000 psi
Elongation, % 6%
Brinell hardness range 187/269
Microstructure, as cast Pearlitic
Machinability Good
Heat treatment Normalize or Oil Quench and Tempered
ASTM Specification A-536

V-4 (80-55-06) ductile iron has a tensile strength of 80,000 psi with a yield strength of 55,000 psi and elongation of 6%. Of the three grades of Versa-Bar ductile iron, 80-55-06 ductile iron is the strongest. It may be heat treated to reach 100,000 psi tensile strength. Due to its pearlitic structure, V-4 can be expected to machine 10-15% below the rates of V-3 (65-45-12).

80-55-06 continuous cast ductile iron is used for a variety of applications, including:

  • Housings
  • Flywheels
  • Gears
  • Pulleys
  • Pistons
  • Rotors
  • Valves

When the physical properties of steel are desired, users will turn to V-4 as an excellent replacement. After all, it has several features surpassing steel as the more efficient, affordable metal for your custom cast components.

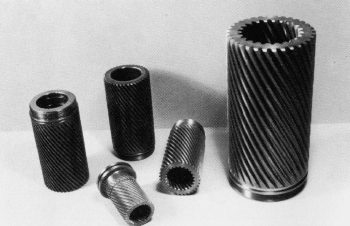

80-55-06 Ductile Iron Rotary Actuator Piston Sleeves

These are rotary actuator piston sleeves made of V-4 (80-55-06) ductile iron. These worm gears are grooved on the O.D. and I.D. The O.D. is then threaded with ring grooves placed on both O.D. and I.D.

80-55-06 Ductile Iron Machining Services

V-4 Continuous Cast Ductile Iron a Direct Steel Replacement

80-55-06 ductile iron brings you tremendous cost savings as a steel alternative when using for parts requiring a lot of machining. Its machinability rating will be similar to common carbon steel grades such as 1144, 1141, 11L17 and 12L14 but will reach much higher machining speeds.

Versa-Bar continuous cast iron offers several benefits over steel, including greater natural corrosion control, more flexibility in the field, and less intensive maintenance. From just about every angle, 80-55-06 ductile iron is a much better metal for custom metal components than steel.

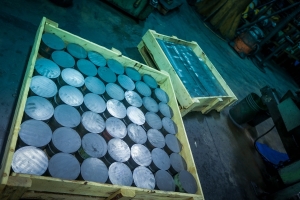

80-55-06 Ductile Iron Stock Material

Iron Bar, Rounds & Rods

Get in business with the best. From custom cast rounds, bars, and rods, you’re able to order our products in a range of diameters. Looking for sizes smaller or larger than what we offer? Contact us today for more specific orders.

AS CAST BARS

Ductile Iron Bars, Rounds & Rods - 6 Foot Lengths
FINISH DIAMETER IN INCHES AVG. STOCK ALLOW. EST. POUNDS PER INCH EST. POUNDS IN BAR
1.500 .085  .53  38
1.625 .085  .61  44
1.750 .085  .71  51
1.875 .085  .81  58
2.000 .085  .90  65
2.125 .110  1.04  75
2.250 .110 1.17  84
2.500 .110  1.29  93
2.625 .110  1.42  102
2.750 .110  1.71  123
2.875 .110 1.86  134
3.000 .110  2.01  145
3.125 .125  2.21  159
3.250 .125  2.38  171
3.375 .125  2.56 184
3.500 .125  2.74  197
3.625 .125  2.93 211
3.750 .125  3.13  225
3.875 .125  3.33 240
4.000 .125  3.54  255
4.250 .140  4.01 289
4.500 .140  4.49  323
4.750 .140  4.97  358
5.000 .140 5.50 396
5.250 .155  6.08 523
5.500 .155 6.67  480
5.750 .155  7.26  523
6.000 .155  7.89 568
6.250 .170  8.58 618
6.500 .170  9.26 667
6.750 .170 9.97  718
7.000 .170  10.71  771
7.250 .190  11.53  830
7.500 .190  12.35 889
7.750 .190 13.13  945
8.000 .190  13.96  1005
8.250 .216  14.92 1074
8.500 .216 15.82  1139
8.750 .216  16.74 1205
9.000 .216 17.68 1273
9.250 .254 18.76 1351
9.500 .254  19.81 1426
9.750 .254  20.83  1500
10.000 .254 21.89 1576
10.250 .400  23.61 1700
10.500 .400 24.27 1781
10.750 .400 25.88 1863
11.000 .400 27.06 1948
11.500 .582 30.38 2187
12.000 .582 32.94 2372
12.500 .582 35.63 2565
13.000 .582 38.40 2765
14.000 .582 44.25 3186
15.000 .582  50.54 3689
16.000 .582 57.24 4121
17.000 .762 65.67 4728
18.000 .762 73.26 5275
19.000 .762 81.29 5853
20.000 .762 89.74 6461

FORMULA:

As cast round weight:
Length in inches x weight per inch = total weight



FREE QUOTE

CENTERLESS GROUND BARS

Tolerance +.010" - .000"
FINISH DIAMETER IN INCHES EST. POUNDS PER INCH EST. POUNDS IN BAR
1.500 .49 35
1.625 .53 38
1.750 .63  45
1.875 .72 52
2.000 .82 59
2.125 .93 67
2.250 1.04 75
2.375 1.17 84
2.500 1.29 93
2.625 1.42 102
2.750 1.58 114
2.875 1.71 123
3.000 1.88 135
3.125 2.03 146
3.250 2.19 158
3.375 2.36 170
3.500 2.56 184
3.625 2.74 197
3.750 2.92 210
3.875 3.13 225
4.000 3.33 240
4.250 3.78 272
4.500 4.24 305
FREE QUOTE

AS CAST O.D. - MACHINED I.D.

Versa-Tube Hollow Bars - 6 foot lengths or cut pieces
FINISH OUTSIDE DIA. IN INCHES ACTUAL INSIDE DIA. IN INCHES EST. POUNDS PER INCH EST. POUNDS IN BAR
3.500 1.250  2.42  174
4.500 1.250  4.15  299
5.500 1.250  6.33  456
4.000 1.750  2.91  209
5.000 1.750  4.86  350
6.000 1.750  7.25  522
4.500 2.250  3.43  247
5.500 2.250  5.59 403
6.500 2.250  8.21  591
7.500 2.250  11.25  810
6.000 2.750  6.32  455
7.000 2.750  9.13  657
8.000 2.750  12.38  892
5.250 3.000  4.20  302
6.250 3.000  6.71  483
7.250 3.000  9.65  695
8.250 3.000  13.04  939
5.500 3.250  4.46  321
6.500 3.250  7.07  509
7.500 3.250  10.10  727
8.500 3.250  13.61  980
5.750 3.500  4.71  339
6.750 3.500  7.42  534
7.750 3.500  10.55  760
8.750 3.500  14.18  1021
6.000 3.750  4.96  357
7.000 3.750  7.77  560
8.000 3.750  11.02  794
9.000

3.750

14.75  1062
6.500 4.250  5.50  396
7.500 4.250  8.54  615
9.500 4.250  16.02  1154
7.000 4.750  6.00  432
8.000 4.750  9.25  666
9.000 4.750  12.97  934
7.500 5.250  6.57  473
8.500 5.250  10.06  725
8.000 5.750  7.08  510
9.000 5.750  10.79  777
9.000 6.750  8.18  589

NOTE:

Inside diameters are actual sizes.
Inside diameter will finish .250" (1/4") over dimensions show.

EXAMPLE:
Actual Size: 3.500" O.D. X 1.250" I.D.
Finish Size: 3.500" O.D. X 1.500" I.D.

FORMULA:
(O.D.2 - I.D.2) X .208 x length in inches = VERSA-TUBE® weight)



FREE QUOTE

Iron Tubes & Piping

Interested in making a specific order on ductile iron tubing? We serve companies around the United States who need to order parts made from materials like 80-55-06 ductile iron. Don’t waste any more money on other countries who only offer you a restricted range of casting possibilities – choose customization with American Iron & Alloys!

Specifications
Custom I.D.s & O.D.s Up to 22"
Material Raw Iron

Iron Billets & Squares

American Iron & Alloys has become the premiere option for companies in the United States who order custom cast billets and squares. We’re expertly machining the exact lengths and diameters our customers order without compromising an inch on accuracy or quality. Place your order with our iron bar stock company today.

Specifications
Squares 1.250 SQ" – 18.5 SQ"
Material Raw or Custom Cast Components

Iron Flat Bar & Plates

Expand your business with the help of our custom casting for ductile iron flat bars and plates. With one of the most impressive 80-55-06 raw material stocks in the country, American Iron & Alloys has the resources necessary for customizing the lengths and diameters to match the specific cuts you request in your order. Don’t limit yourself – widen your options with American Iron & Alloys today.

Specifications
Starting Diameter 18.5" x 22" x 72"
Diameter Limit 10.5" x 24" x 82"

Versa-Bar 80-55-06 Ductile Iron Promotes Oil Retention

80-55-06 ductile iron

V4 80-55-06 ductile iron is a direct steel replacement.

Versa-Bar ductile iron from American Iron & Alloys provides unmatched benefits in terms of durability and longevity. A higher graphite flake count present in 80-55-06 Versa-Bar promotes retention of oil and self-lubrication, keeping your parts lubricated for longer. In the event of an oil loss, Versa-Bar’s ability to retain oil means your custom components are more likely to survive. The continuous casting process makes our Versa-Bar metalurgically superior to any other metals on the market.

80-55-06 ductile iron (and all other grades of ductile iron from AIA) feature high machining rates and good dampening capacity combined with high strength.

Versa-Bar is a high quality metal offered to you as raw stock and as precision CNC machined custom components at a low price.

Versa-Bar beats aluminum, bronze and steel. Every time.

The following chart displays speeds and feeds for aluminum, bronze, steel and V-4 80-55-06 ductile iron. The rates were used by the field test operator for normal production requirements on the machine used.

Operators were asked to reach the optimum sfm on the Versa-Bar and maintain comparable depth of cut and surface roughness with each of the other metals. All tests were performed on conventional tooling and equipment. Here are the results:

  CAST IRON ALUMINUM BRONZE STEEL
  V-4 DUCTILE
(80-55-06)
6061-T6 2024 T-3 SAE 660 C-1045
R.P.M 1100 1500 550 1100 1500 1100 1100 1500 1100 1500
FEED .009 .013 .006 .009 .013 .009 .009 .011 .009 .013
DEPTH OF CUT .125 .060 .180 .125 .250 .125 .125 .125 .125 .125
LENGTH OF CUT 4" 4" 4" 4" 4" 4" 3.25" 3.25" 5" 5"
R.M.S 63FS 63FS 80FS 60FS 125FS 60FS 80FS 80FS 63FS 150FS
WITH COOLANT YES NO NO YES YES YES YES YES YES YES
MACHINE HORSEPOWER 7HP 7HP 7HP 7HP 7HP 7HP 7HP 7HP 7HP 7HP
TAPER .001 .001 .001 .001 .001 .0005 .0005 .0005 .001 .001
S.F.M 575 800 270 575 800 575 950 1200 800 900

Contact 80-55-06 ductile iron suppliers
at American Iron & Alloys for more information about our gray and ductile iron stock.
