Cast Iron Bars

Continuous Cast Iron Bar, Round and Rod Stock Suppliers in Wisconsin

Choose Versa-Bar cast iron bar for...

  1. Decreased material costs
  2. Improved machinability
  3. Superior performance & durability
FREE QUOTE

Continuous cast gray and ductile iron bar from American Iron & Alloys offers a superior alternative to traditional sand castings and steel.

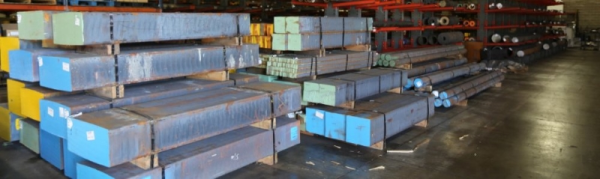

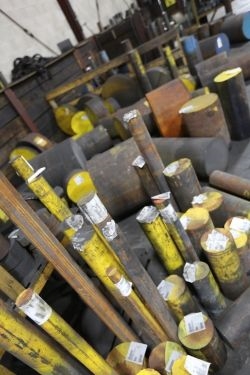

Cast Iron Bars, Rounds and Rods Stock Material

We cut you standard or custom size cast iron bar, rounds and rods.

Ordinary cast iron can’t compete with Versa-Bar in terms of quality and versatility.

Continuous cast iron offers manufacturers in the fluid power industry a way to cut costs and INCREASE overall quality. Bearing manufacturers, pattern shops and construction equipment engineers benefit from continuous cast iron’s superior metallurgical composition. Get a free quote for our cast iron raw stock material.

American Iron & Alloys Cast Iron Bar Grades

V-1A Glass Mold Iron | V-1 Class 30 Gray Iron | V-5 100-70-03 Ductile Iron | V-6 Class 35 Gray Iron

Available Cast Iron Bar Stock

AS CAST BARS

Gray & Ductile Iron Bars, Rounds & Rods - 6 Foot Lengths
FINISH DIAMETER IN INCHES AVG. STOCK ALLOW. EST. POUNDS PER INCH EST. POUNDS IN BAR
 .625 .085  .10
 .750 .085  .15  11
 .875 .085  .19  14
 1.000 .085  .25  18
 1.125 .085  .31  22
 1.250 .085  .38  27
 1.375 .085  .44  32
 1.500 .085  .53  38
 1.625 .085  .61  44
 1.750 .085  .71  51
 1.875 .085  .81  58
 2.000 .085  .90  65
 2.125 .110  1.04  75
 2.250 .110  1.17  84
 2.500 .110  1.29  93
 2.625 .110  1.42  102
 2.750 .110  1.56  112
 2.875 .110  1.86  134
 3.000 .110  2.01  145
 3.125 .125  2.21  159
 3.250 .125  2.38 171
 3.375 .125  2.56  2.74
 3.500 .125  2.74  197
 3.625 .125  2.93  211
 3.750 .125  3.13  225
 3.875 .125  3.33  240
 4.000 .125  3.54  255
 4.250 .140  4.01  289
 4.500 .140  4.49  323
 4.750 .140  4.97  358
 5.000 .140  5.50  396
 5.250 .155  6.08  438
 5.500 .155  6.67  480
 5.750 .155  7.26  523
 6.000 .155 7.89  568
 6.250 .170  8.58  618
 6.500 .170  9.26  667
 6.750 .170  9.97  718
 7.000 .170  10.71 771
 7.250 .190  11.53  830
 7.500 .190  12.35  889
 7.750 .190  13.13  945
 8.000 .190  13.96  1005
 8.250 .216  14.92  1074
 8.500 .216  15.82  1139
 8.750 .216  16.74  1205
 9.000 .216  17.68  1273
 9.250 .254  18.76  1351
 9.500 .254  19.81  1426
 9.750 .254  20.83  1500
 10.000 .254 21.89 1576
 10.250 .400  23.61  1700
 10.500 .400  24.27  1781
 10.750 .400  25.88  1863
 11.000 .400  27.06  1948
 11.500 .582  30.38  2187
 12.000 .582  32.94  2372
 12.500 .582  35.63  2565
 13.000 .582  38.40  2765
 14.000 .582  44.25  3186
 15.000 .582  50.54  3689
 16.000 .582  57.24  4121
 17.000 .762  65.67  4728
 18.000 .762  73.26  5275
 19.000 .762  81.29  5853
 20.000 .762  89.74  6461

FORMULA:

As cast round weight:
Length in inches x weight per inch = total weight



FREE QUOTE

CENTERLESS GROUND BARS

Tolerance +.010" - .000"
FINISH DIAMETER IN INCHES EST. POUNDS PER INCH EST. POUNDS IN BAR
 .625 .08 6
 .750 .13
 .875 .17  12
 1.000 .21  15
 1.125 .28  20
 1.250 .33  24
 1.375 .40  29
 1.500 .49  35
 1.625 .53  38
 1.750 .63  45
 1.875 .72  52
 2.000 .82  59
 2.125 .93 67
 2.250 1.04  75
 2.375 1.17 84
 2.500 1.29 93
 2.625 1.42  102
 2.750 1.58  114
 2.875 1.71  123
 3.000 1.86  135
 3.125 2.03  146
 3.250 2.19 158
 3.375 2.36 170
 3.500 2.56  184
 3.625 2.74  197
 3.750 2.92  210
 3.875 3.13  225
 4.000 3.33  240
 4.250 3.78  272
 4.500 4.24  305
FREE QUOTE

AS CAST O.D. - MACHINED I.D.

Versa-Tube Hollow Bars - 6 foot lengths or cut pieces
FINISH OUTSIDE DIA. IN INCHES ACTUAL INSIDE DIA. IN INCHES EST. POUNDS PER INCH EST. POUNDS IN BAR
3.500 1.250  2.42  174
4.500 1.250  4.15  299
5.500 1.250  6.33  456
4.000 1.750  2.91  209
5.000 1.750  4.86  350
6.000 1.750  7.25  522
4.500 2.250  3.43  247
5.500 2.250  5.59 403
6.500 2.250  8.21  591
7.500 2.250  11.25  810
6.000 2.750  6.32  455
7.000 2.750  9.13  657
8.000 2.750  12.38  892
5.250 3.000  4.20  302
6.250 3.000  6.71  483
7.250 3.000  9.65  695
8.250 3.000  13.04  939
5.500 3.250  4.46  321
6.500 3.250  7.07  509
7.500 3.250  10.10  727
8.500 3.250  13.61  980
5.750 3.500  4.71  339
6.750 3.500  7.42  534
7.750 3.500  10.55  760
8.750 3.500  14.18  1021
6.000 3.750  4.96  357
7.000 3.750  7.77  560
8.000 3.750  11.02  794
9.000

3.750

14.75  1062
6.500 4.250  5.50  396
7.500 4.250  8.54  615
9.500 4.250  16.02  1154
7.000 4.750  6.00  432
8.000 4.750  9.25  666
9.000 4.750  12.97  934
7.500 5.250  6.57  473
8.500 5.250  10.06  725
8.000 5.750  7.08  510
9.000 5.750  10.79  777
9.000 6.750  8.18  589

NOTE:

Inside diameters are actual sizes.
Inside diameter will finish .250" (1/4") over dimensions show.

EXAMPLE:
Actual Size: 3.500" O.D. X 1.250" I.D.
Finish Size: 3.500" O.D. X 1.500" I.D.

FORMULA:
(O.D.2 - I.D.2) X .208 x length in inches = VERSA-TUBE® weight)



FREE QUOTE
Continuous Cast Iron Bar Stock

Order bulk cast iron bar stock at low prices. Get a free online quote NOW.

From Raw Material to Custom Cast Components

We’re more than a dealer. Our in-house CNC shop boasts the capability of precision machining cast iron components. Save on shipping costs by keeping stock purchases and CNC machining services under one roof.

Send us a drawing and we’ll get you a full quote on materials cost and estimate the machining of your custom iron component(s).

  • Glass Moulds: Neck Rings, Plungers, Cores
  • Dies, Rollers, Sleeves, Spacers
  • Pistons
  • Glands
  • Manifolds
  • Gears
  • Bushing
  • Pulleys
  • Moulds
  • Mounting plates
  • Pins
  • Brake discs
  • Bearing caps
  • Valve guides
Contact American Iron & Alloys in Waukesha, Wisconsin for a quote on materials and/or machining services.
